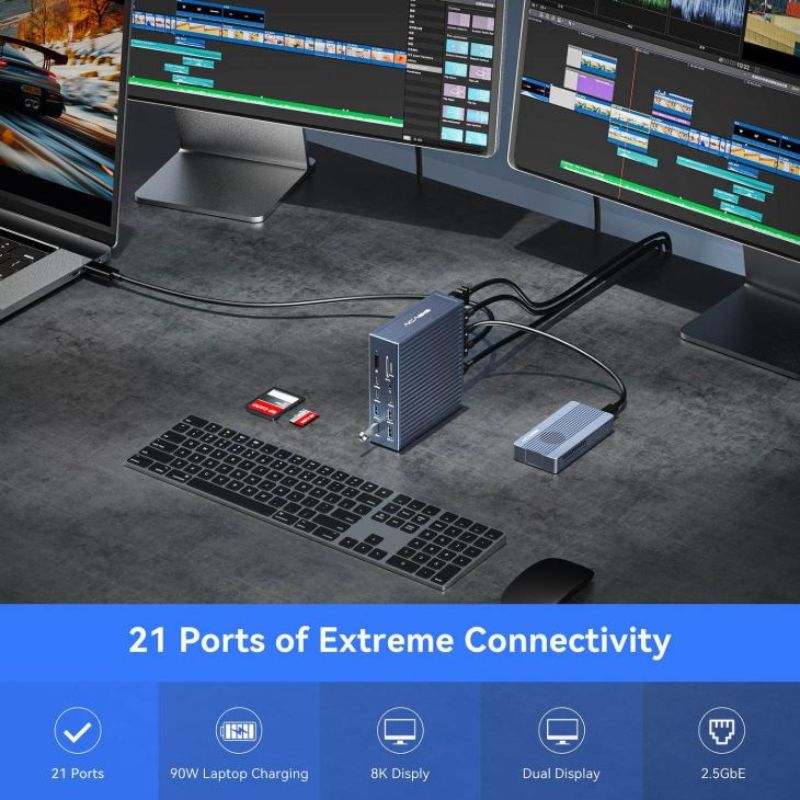

ACASIS DS-9007 21-in-1 Thunderbolt 4 Workstation Dock

ACASIS DS-9007 21-in-1 Thunderbolt 4 Workstation Dock — Key Specifications

Brand: ACASIS

Model: DS-9007

Product Type: 21-in-1 Thunderbolt 4 Docking Station

Host Interface: USB-C / Thunderbolt 4

Maximum Bandwidth: 40Gbps

Display Support: Single 8K@60Hz / Dual 4K@60Hz

Laptop Charging: Up to 90W

Housing: Aluminum alloy

Color: Gray / Phantom Gray

Port Specifications

1. Thunderbolt 4 / USB4: 3 × 40Gbps

2. USB-C 3.2 Gen 2: 4 × 10Gbps

3. USB-A 3.2 Gen 2: 4 × 10Gbps

4. USB 2.0: 2 × 480Mbps

5. HDMI: 1 × HDMI 2.1

6. Ethernet: 1 × RJ45, 2.5Gbps

7. SD Card Reader: 1 × SD 4.0 UHS-II

8. MicroSD Card Reader: 1 × TF 4.0 UHS-II

9. Audio: 3 × 3.5mm audio connections

10. Power Input: 1 × DC input

11. Security: 1 × Security slot

General Specifications

• Maximum Single Display: 8K@60Hz

• Maximum Dual Displays: 2 × 4K@60Hz

• Power Adapter: 240W

• Maximum Host Charging: 90W

• Compatibility: Thunderbolt 4, Thunderbolt 3, USB4 and supported USB-C devices

• Operating Systems: Windows, macOS, Linux and compatible ChromeOS devices

• Package Contents: Dock, Thunderbolt 4 cable, power adapter and user manual

Note: Actual display output and charging depend on your laptop's capabilities. The 240W rating is the dock's power adapter rating, not its laptop charging output.
